| Fan Model:FB4-P4-D500(60Hz) |
|
|
DIA&Blade
|
HP
|
PH
|
RPM
|
Voltage(V)
|
Name AMPS(A)
|
Running AMPS(A)
|
Fan Volume
|
Dynamic Pressure(Pa)
|
dBa
|
Weigh(kg)
|
|
20＇* 4wing
|
1/4
|
1
|
1750
|
208-230
|
1.8
|
1.78
|
4720CFM
|
67
|
63
|
18
|
|
115
|
3.7
|
3.46
|
|
20＇* 4wing
|
1/4
|
3
|
1750
|
460
|
0.8
|
0.78
|
4720CFM
|
67
|
63
|
18
|
|
230
|
1.6
|
1.56
|
Fan Model:FB4-P4-D500(50Hz)
DIA&Blade |
Power |
PH |
RPM |
Voltage(V) |
Name AMPS(A) |
Running AMPS(A) |
Fan Volume |
Dynamic Pressure(Pa) |
dBa |
Weigh(kg) |
20＇* 4wing |
185W |
3 |
1450 |
380-415
|
0.74 |
0.58 |
5400m3/h |
40 |
60 |
18 |
 Protection
class IP55 Insulation class F
Naming
rules:F=Fan B4=Four
Blades P4=Four Poles D500=The diameter of impeller is 500mm.
Sound

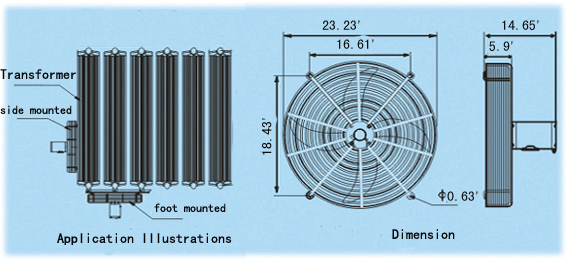

level is measured at 2m from the motor when the fan is working
on transformer.
|
